Baja Designs LP6 Pro Bumper Light Kit for Jeep Gladiator JT (2020-2022) w/OE Steel Bumper

This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! The wiring in this kit is specifically designed to run in conjunction with factory upfitter systems or sPOD / Switch Pros units. The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200 degree spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.

Specifications:

• Pod dimensions: Length 5.1" Height 5.1" Depth 3.2"

• Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
• Forward Projecting Wattage/Amps: 90W / 6.5A
• IPT Lumens: 1,700 Utilizing 4 LEDs
• IPT Wattage/Amps: 15W / 1.0A
• Backlight Wattage/Amps: 4.14W / 0.3A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

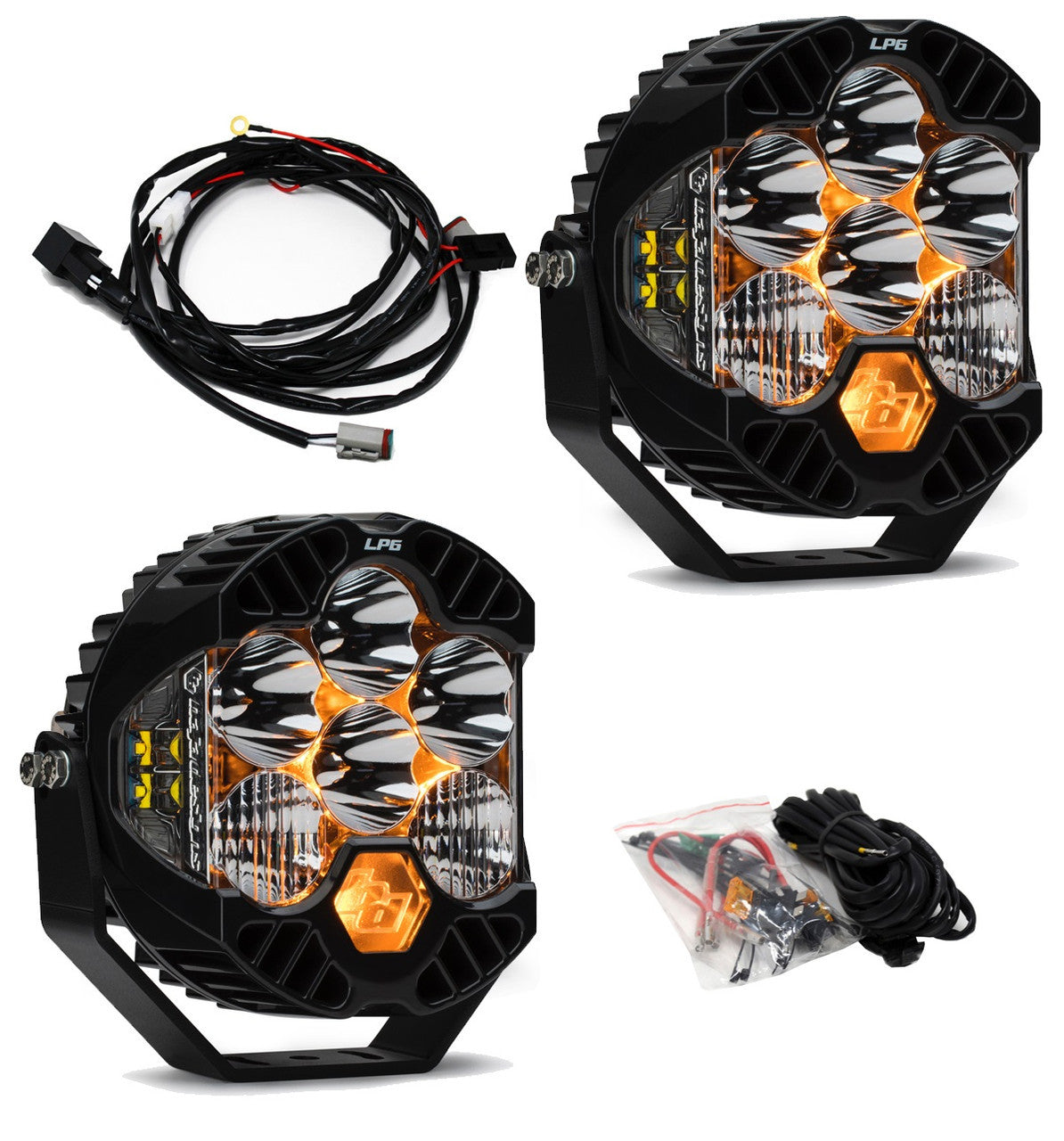

Includes:

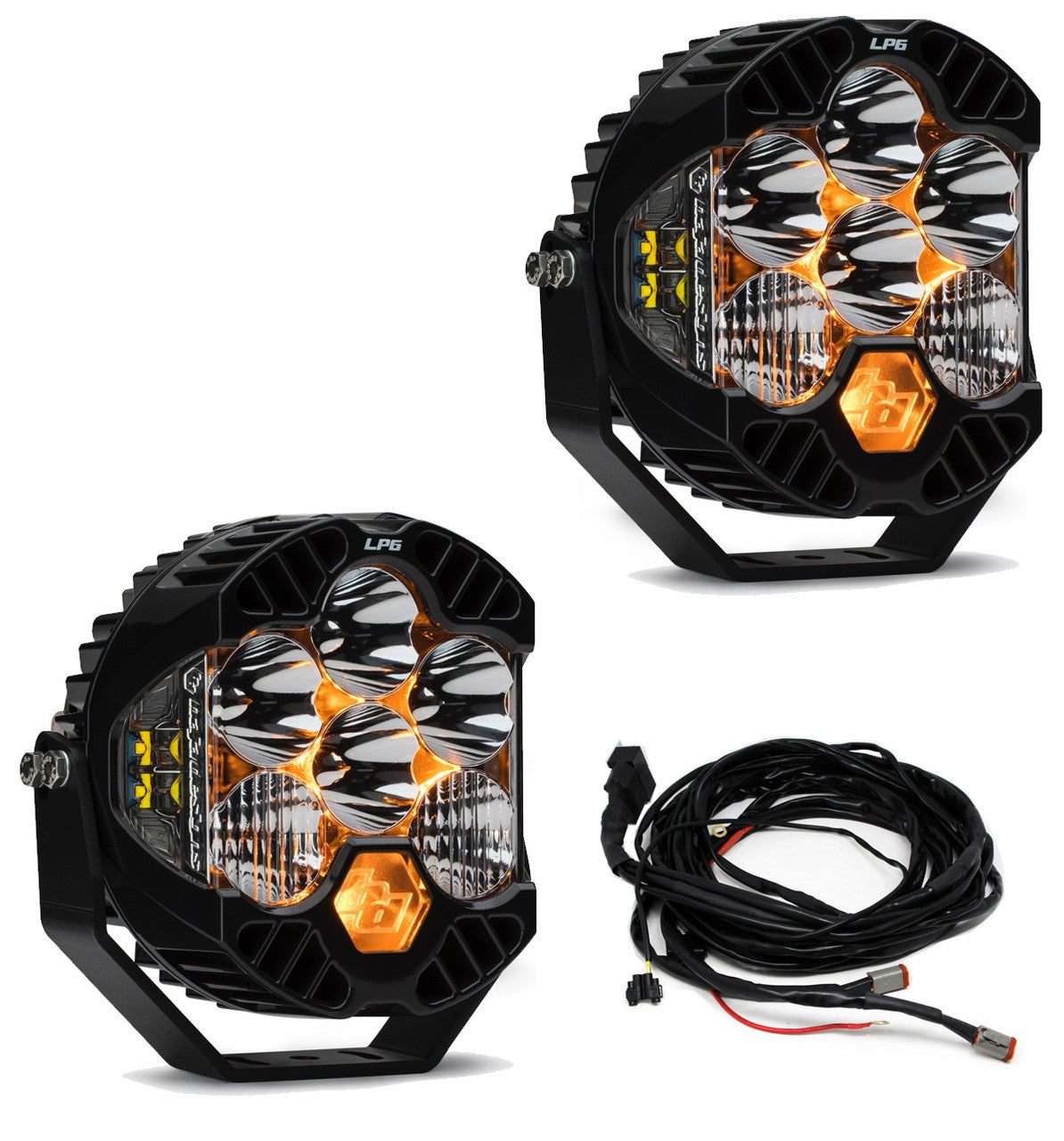

• x2 LP6 Pro LED Light
• Toggle x1 Wiring Harness / Upfitter x2 Wiring Harness
• Zip ties


Application:

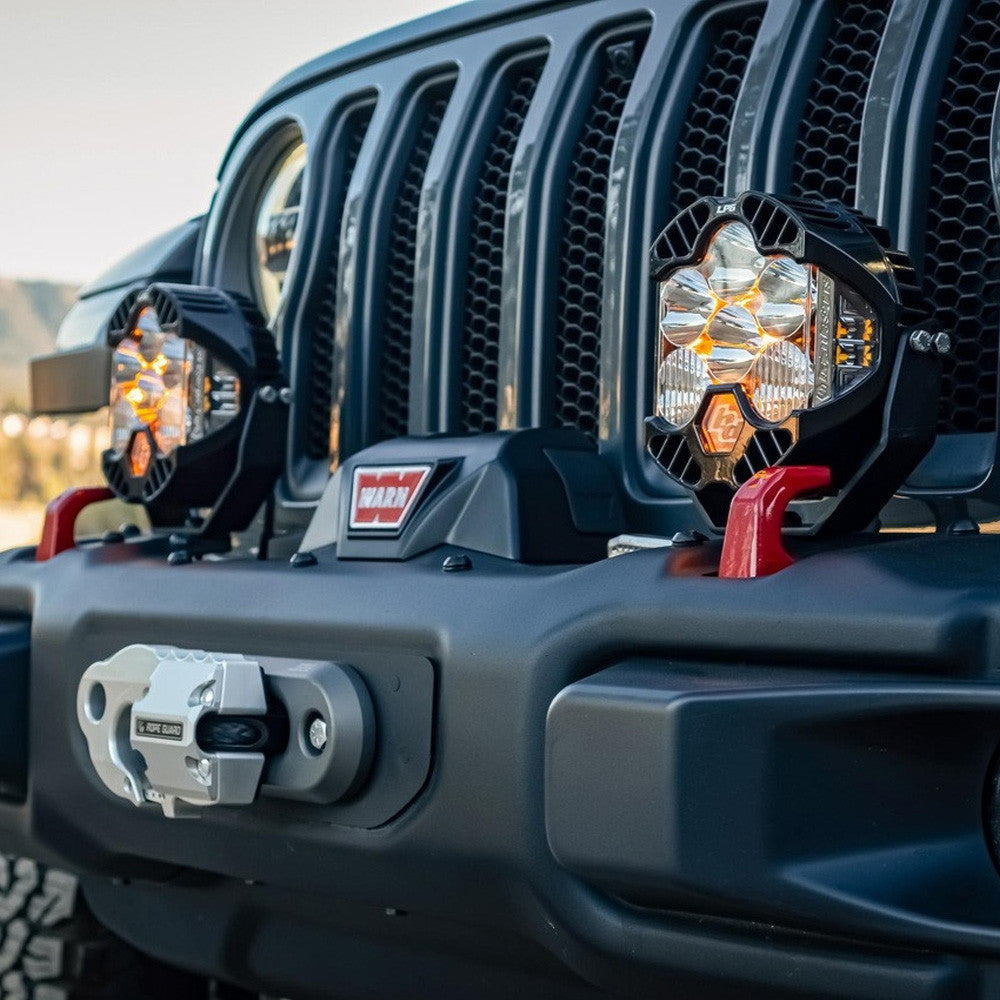

• Jeep JT Rubicon W/ Steel Bumper

Patterns:

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Installation Instructions:

• Baja Designs 447671 Installation Sheet

Note : Prior to check out, please click here to confirm product availability, fitment and payment methods.

VEHICLE LIGHTING ZONES

The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
