Baja Designs Squadron-R SAE Fog Pocket Light Kit for Jeep Wrangler JK 2010-2018: Note w/Standard OE Bumper

NOTE: This kit is only compatible with Jeep Wrangler JKs with the standard OE bumper. This kit uses the H16 stock adaptor plug.

Baja Designs next generation Squadron® SAE fog pocket kit for the Jeep JK with standard OE bumper is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection.

Specifications:

• Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
• Lumens: 2,480 Utilizing 4 Cree LEDs
• Compliance Standard: SAE Standard J583
• Wattage/Amps: 22W / 1.6A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)
• uService® – Replaceable Lenses And Optics
• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

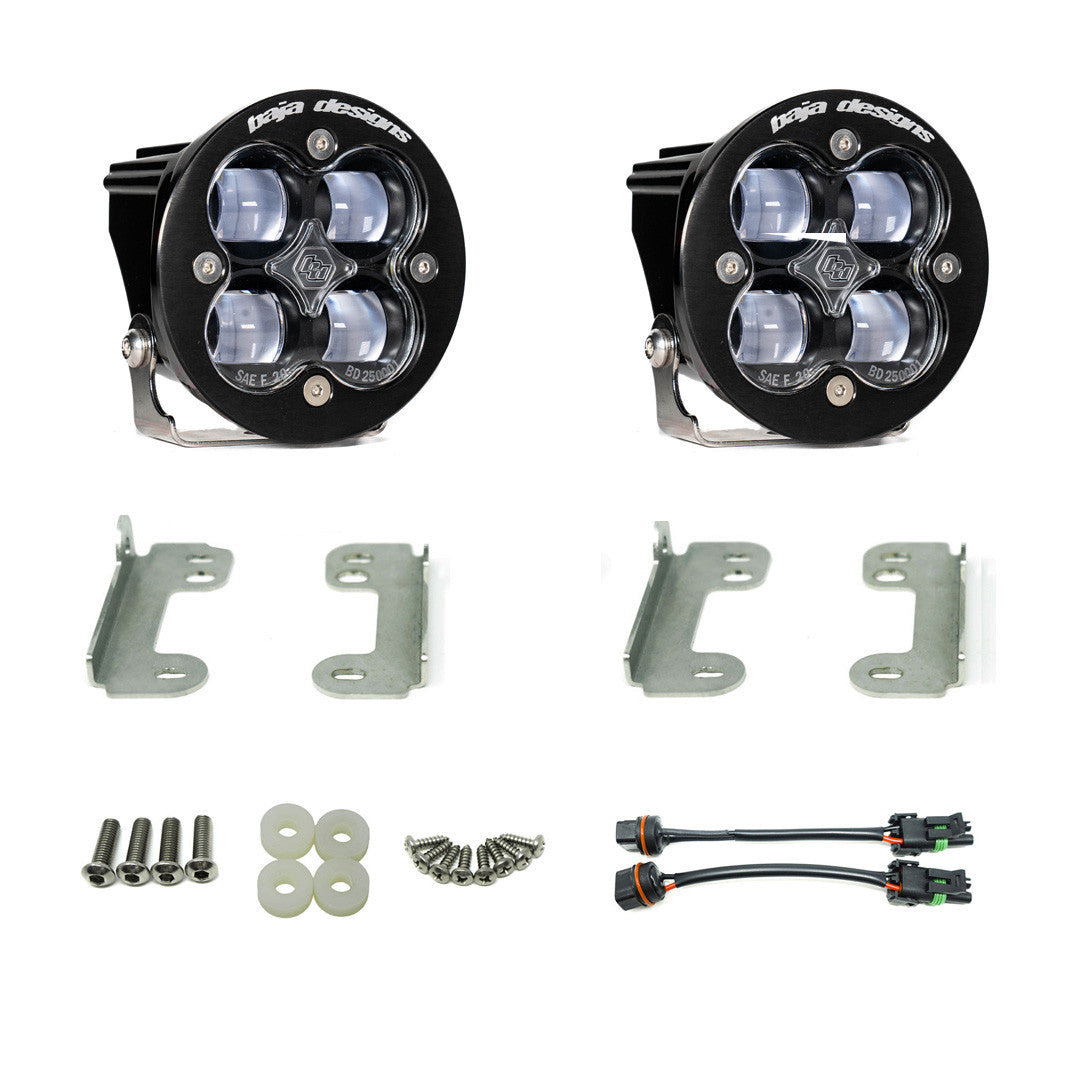

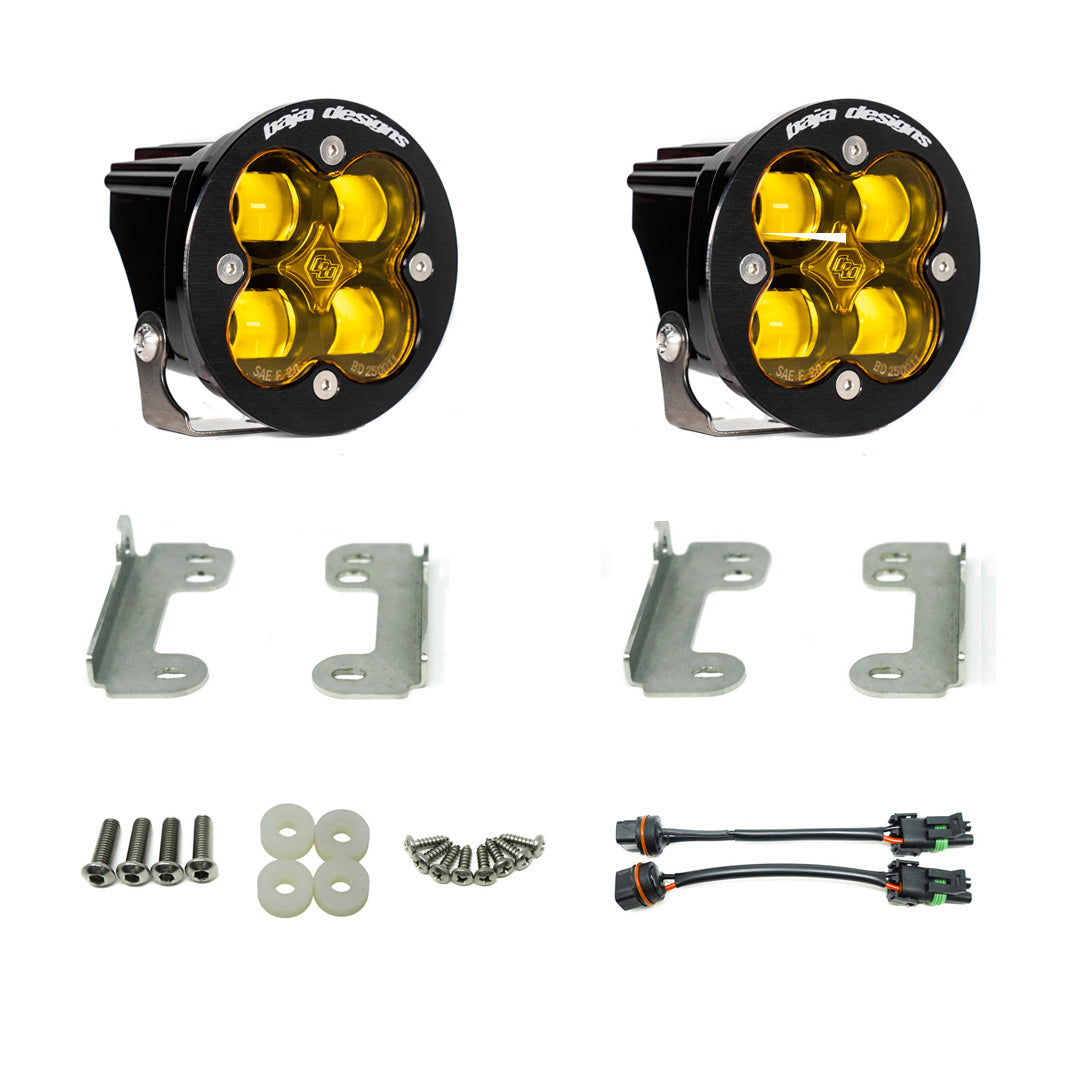

Includes:

• x2 Squadron-R SAE LED Light
• x2 Mounting Bracket
• Wiring Harness

Installation Instructions:

• Baja Designs 447621 Installation Sheet
• Baja Designs 447721 Installation Sheet

Note : Prior to check out, please click here to confirm product availability, fitment and payment methods.

VEHICLE LIGHTING ZONES

The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
