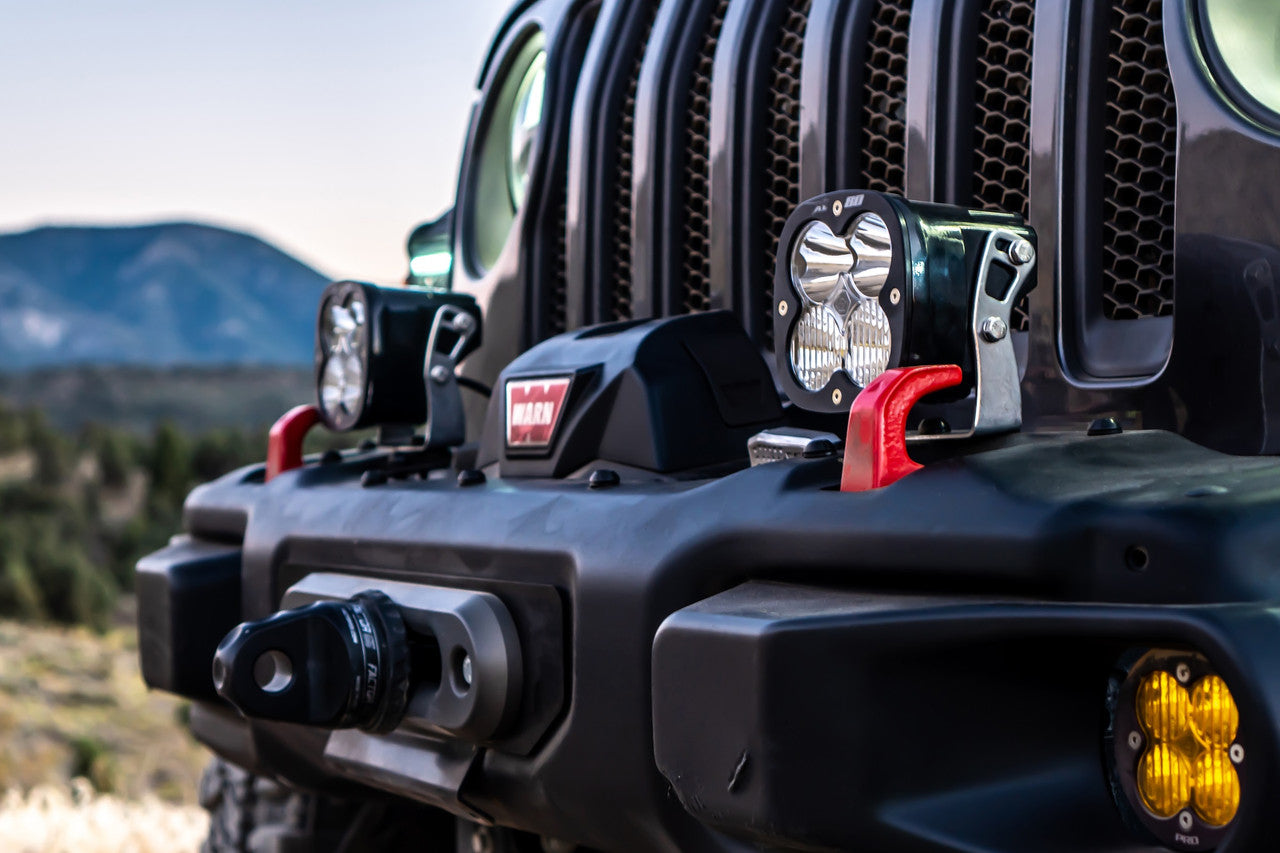

Baja Designs XL Pro Bumper Light Kit for Jeep Wrangler JL (2018-2022) w/OE Steel Bumper

This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! The wiring in this kit is specifically designed to run in conjunction with factory upfitter systems or sPOD / Switch Pros units. With a 4,900 lumen count and power draw of 40 watts, the XL Pro is the only single housing LED auxiliary light on the market that has the distance of an 8 inch HID with the smooth spread of an LED. The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature. Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Specifications:

• Pod dimensions: 4.43" x 3.65" x 4.43"

• Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
• Wattage/Amps: 40W / 2.90A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

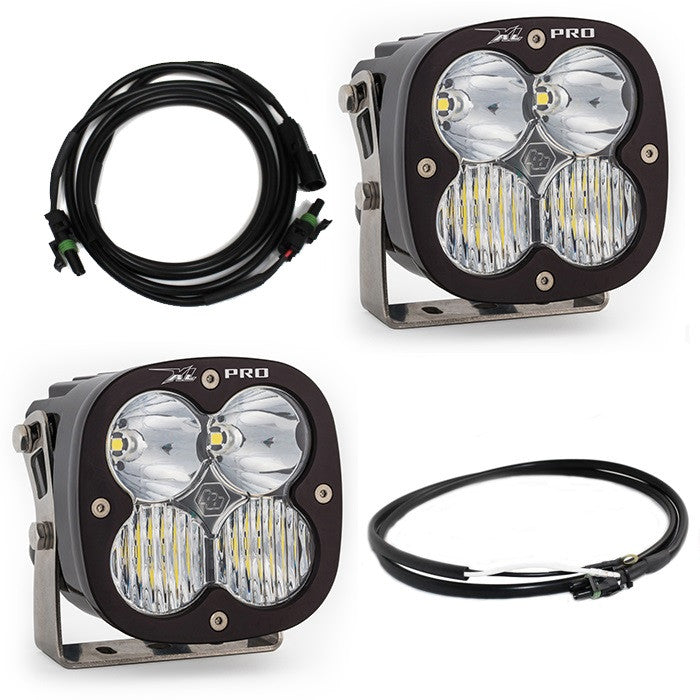

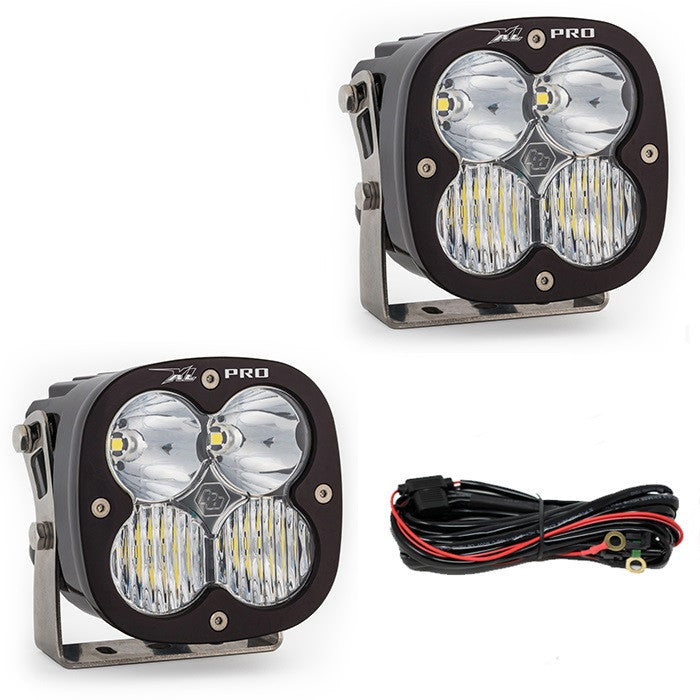

Includes:

• x2 XL Pro LED Light
• x2 Mounting Bracket
• Toggle x1 Wiring Harness / Upfitter x2 Wiring Harness
• Zip ties


Application:

• Jeep JL Rubicon W/ Steel Bumper

Patterns:

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
• Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
• Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)


Installation Instructions:

• Baja Designs 447668 Installation Sheet

Note : Prior to check out, please click here to confirm product availability, fitment and payment methods.

VEHICLE LIGHTING ZONES

The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
